Scorpio
For Brian (ps thats NOT the real name of our robot)
Section titled “For Brian (ps thats NOT the real name of our robot)”Module Configuration
Section titled “Module Configuration”| Module | Angle Motor ID | Drive Motor ID |
|---|---|---|
| Front Left | 10 | 11 |
| Front Right | 12 | 13 |
| Back Left | 14 | 15 |
| Back Right | 16 | 17 |
Motor Orientation
Section titled “Motor Orientation”- Angle Motor: Extends from the middle of the robot to the left
- Drive Motor: Extends from the middle of the robot to the right

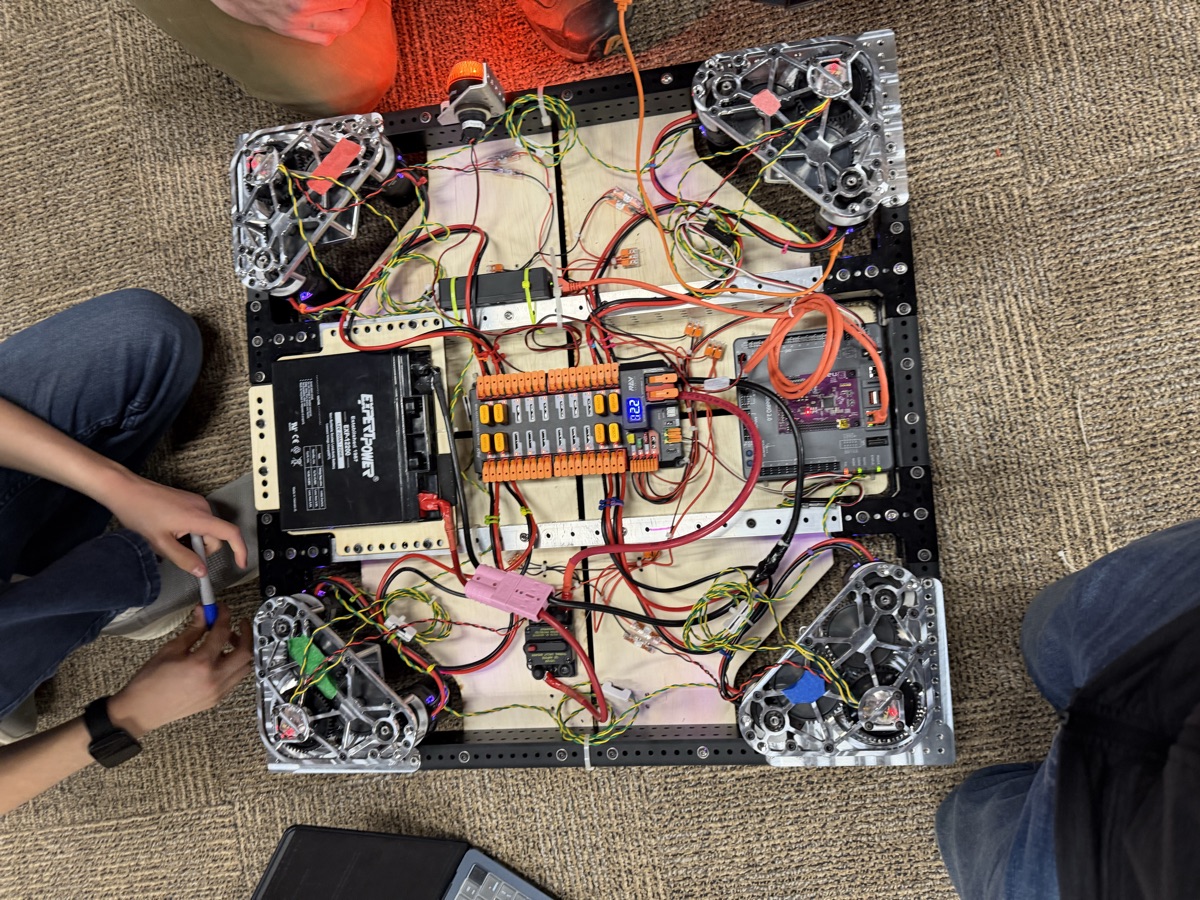

Robot Picture
Section titled “Robot Picture”
From top view, the front of the robot is the side with the battery
